Hoffman Hoffman EDR19FM45U


Description

Industry Description

2-Post Open Frame Rack, 84.00x20.25x15.00, Black, Aluminum

Modified Industry Description

OPEN NETWORK RACK 19 IN X 45U

AD Description

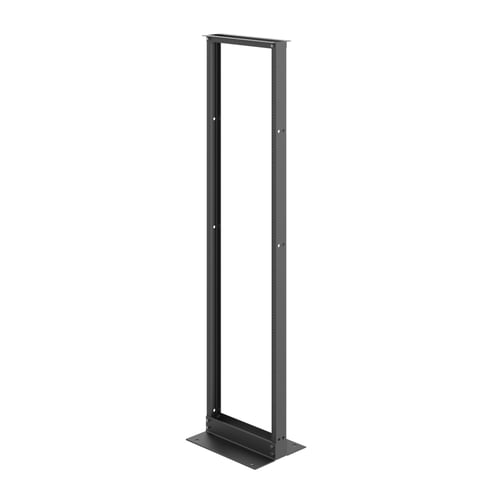

Hoffman EDR19FM45U 2-Post 45-Rack Unit Open Frame Rack, 84 in H x 15 in W x 20-1/4 in D

Vendor Description

Designed for use in communication data centers and telecommunication rooms, 2-Post Open Frame Racks satisfy basic functional requirements for structuring cable. Racks are available in 3-in. or 6-in. column widths.

Specifications

Application
Networking, Storage and Data Center
Brand Name
Hoffman
Color
Black
Country of Origin
US
Finish
Black Polyester Powder Coated
Material
Aluminum
Special Features

  • 2-post open frame racks satisfy basic functional requirements for structuring cable
  • Convenient rack and cable manager packages offered with either one or (2) 6 in cable managers
  • EIA Universal 5/8 in, - 5/8 in, - 1/2 in vertical mounting hole pattern matches industry standards
  • Frame is a strong and lightweight aluminum (6063-T6 alloy), extruded or formed, with RU markings on both front and back of uprights
  • Packed unassembled in individual cartons, assembly hardware (including twenty 12-24 mounting screws) is furnished for convenient storage and installation
  • Range of heights from 4 to 9 ft (24U to 58U) to match capacity requirements; 19-in rack packages are 7 ft high
  • RU markings on both front and back of uprights make it easier to mount equipment
  • Side rails are tapped on both sides with 12-24 UNC threads for quick installation
Standard
UL 1863 Listed, File No. E230874, cUL Listed per CSA C22.2 No. 182.4, File No. E230874, EIA 310-D
Sub_Brand
Hoffman
Thickness
NaN
Type
2-Post
