Hubbell Hubbell HBL320B4W
Hubbell HBL320B4W
Kirby Risk #: 498015
UPC: 78358540326, 783585403267, 00783585403267
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

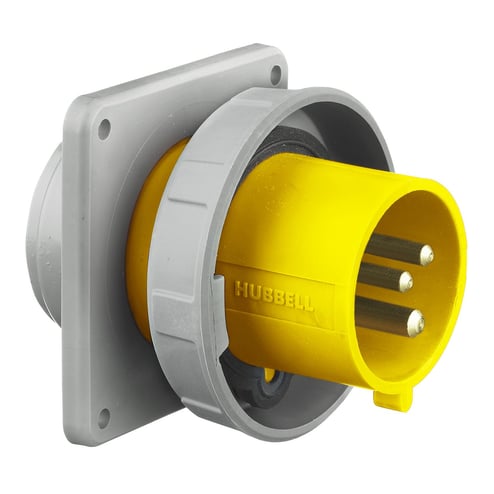

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Flanged Inlet, 20A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Yellow, Watertight
Modified Industry Description
20A 125V 2 POLE 3 WIRE MALE FLANGED INLET
AD Description
Wiring Device-Kellems HBL320B4W 1-Phase Grounding Male Standard Watertight Flanged Inlet, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#14AWG to #10AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
|
| Type |
Single Flanged Inlet
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
