Hubbell Hubbell HBL23CM10


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, ScrewTerminal, Yellow

Modified Industry Description

LOCKING SGL RCPT NEMA L5-20R

AD Description

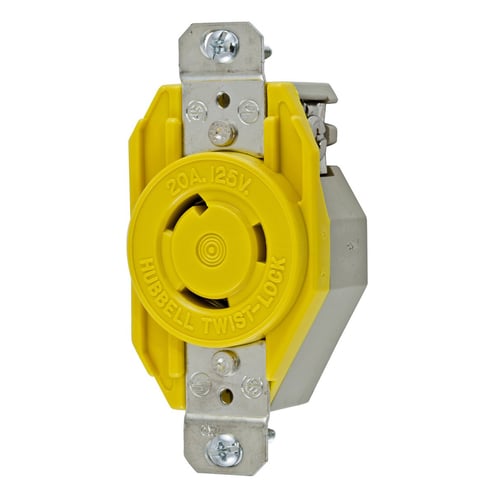

Wiring Device-Kellems Twist-Lock® HBL23CM10 Flush Mount Grounding Single Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Specifications

Amperage Rating
20
Application
Marine Wiring Devices
Brand Name
Hubbell
Color
Yellow
Connection
Screw Terminal
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Nylon
Mounting
Screw Mount
NEMA_Rating
NEMA L5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 0.04 in brass contact spring, ground contact and back plate
  • 0.04 in brass terminal clamp material
  • 0.05 in brass bridge mounting strap
  • 20 A 12 AWG terminal accommodation
  • Black nylon cover (top), nylon polyester base
  • Brass rivet, stainless steel auto ground clip
  • Certified for current interrupting at full rated current
  • Corrosion resistant
  • Face color coding by voltage facilitates locating and mating of proper devices
  • HB or better per UL 94 or CSA 22.2 no. 0.6 flammability
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded in or stamped on ratings
  • Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • NO 10 to 32 brass (green finish) ground screw
  • NO 10 to 32 bronze (white finish on neutral screw when used) terminal screw
  • Permanently ink marked on product catalog number
  • Terminals identified in accordance with UL498 (x, y, z, white, green)
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Withstand 2000 VAC minimum dielectric voltage
  • Zinc plated steel mounting screws
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Flush Mount Grounding Single
Voltage Rating
125
Wattage
3,750
