Hubbell Hubbell HBL26CM13V
Hubbell HBL26CM13V
Kirby Risk #: 497523
UPC: 78358580823, 783585808239, 00783585808239
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

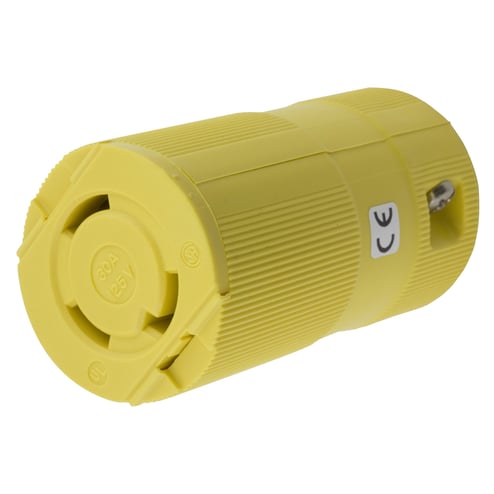

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine GradeValise, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Yellow
Modified Industry Description
LOCKING FEMALE CONN NEMA L5-30R
AD Description
Wiring Device-Kellems Twist-Lock® Valise® HBL26CM13V Heavy Duty Isolated Grounding Standard Sized Female Connector
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L5-30R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Valise
|
| Voltage Rating |
125
|
