Hubbell Hubbell HBL11
Hubbell HBL11
Kirby Risk #: 497171
UPC: 78358501667, 783585016672, 00783585016672
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

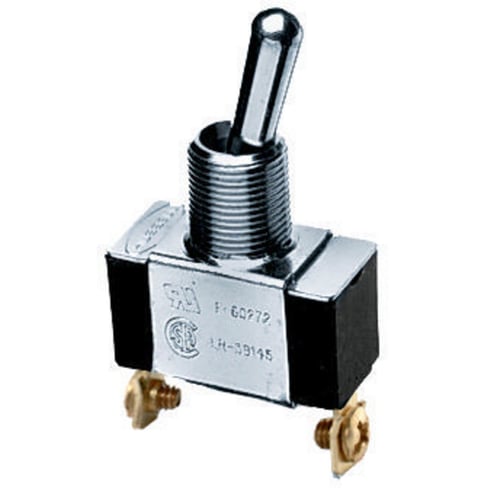

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Commercial Grade, Panel Mount and Specialty Switches, Bat HandleSwitches, Single Pole Single Throw, 10A 250V/10A 125V, Terminal Screws,Nickel Plated Brass
Modified Industry Description
BAT HANDLE SWITCH, SCREW TERMINAL, SPST
AD Description
Wiring Device-Kellems HBL11 2-Position Heavy Duty Toggle Switch, 125/250 VAC, 20/10 A, 2500 W
Specifications
| Actuator |
Bat Handle
|
|---|---|
| Amperage Rating |
20/10
|
| Application |
On/Off
|
| Brand Name |
Hubbell
|
| Color |
Metallic
|
| Connection |
Screw Terminal
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
As Indicated
|
| Country of Origin |
CA
|
| Environmental_Conditions |
-40 to 75 deg C Temperature
|
| Indicator |
Comes with Indicator Plate
|
| Interrupt_Rating |
10A 250V AC, 20A 125V AC
|
| Material |
Thermoplastic
|
| Mounting |
Panel
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
Not Rated
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL Recognized
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position Heavy Duty
|
| Voltage Rating |
125/250
|
| Wattage |
2,500
|
