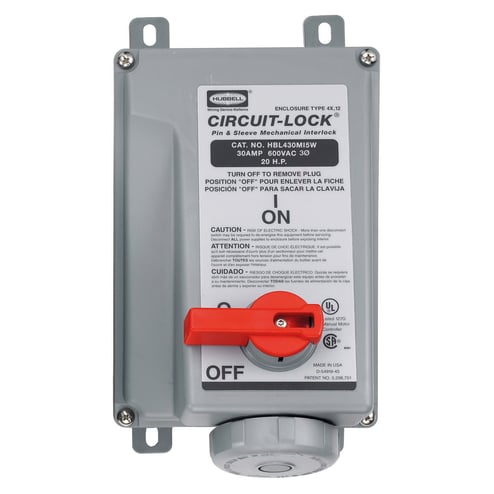

Hubbell Hubbell HBL430MI5W
Hubbell HBL430MI5W
Kirby Risk #: 496563
UPC: 78358540596, 783585405964, 00783585405964
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws,Black, Watertight
Modified Industry Description
30A 600V 3 POLE 4 WIRE FEMALE RECEPTACLE
AD Description
Wiring Device-Kellems HBL430MI5W Female Grounding Watertight Mechanical Interlock Device, 600 VAC, 30 A, 3 Poles, 4 Wires
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Threaded
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Female Grounding Watertight
|
| Voltage Rating |
600
|
| Wattage |
18
|
