Appleton Appleton 8379


Description

Industry Description

Features:Configuration 20 AMP Twist Lock Receptacle 1-19/32IN Dia, Standard:UL E18095, Material:Steel, Shape:Square, Size:4 X 4 X 0.5IN, Cubic Capacity:7CI

Modified Industry Description

4 SQUARE COVER FOR SINGLE RECEPTACLE 1 19/32, 4 X 4 X 1/2 IN

AD Description

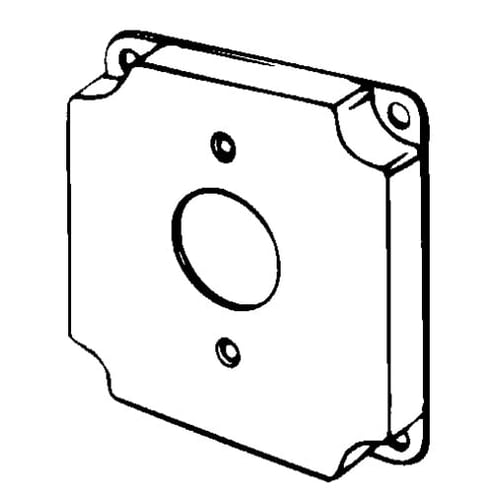

Appleton® ETP™ 8379 Raised Electrical Box Cover, 4 in L x 4 in W x 1/2 in D, Receptacle Cover, Steel

Specifications

Brand Name
Appleton
Capacity
7
Country of Origin
US
Cubic_Capacity
7CU-IN
Cutout
1 - 1-19/32 Twist-Lock Receptacle
Finish
Galvanized
Material
Steel
Number_Of_Gangs
1
Shape
Square
Size
4 x 4 x 0.5Inches
Special Features

  • 20 A twist lock receptacle
  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
  • Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
  • Other boxes provided with flat ground tapped hole except plenum boxes
  • Single and 2-gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
Standard
UL Standard 514A; UL Listed E2527; Nema OS-1
Sub_Brand
Appleton
Type
Raised
