Appleton Appleton 8375N

Name: Appleton 8375N
Brand: Appleton
SKU: 496068
Price: 5.61 USD
Availability: InStock

Appleton 8375N

Kirby Risk #: 496068

UPC: 68785570303, 687855703036, 00687855703036

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Appleton

Description

Industry Description

Features:Configuration One Toggle Switch, One Duplex Flush, Standard:UL E18095, Material:Steel, Shape:Square, Size:4 X 4 X 0.5IN, Cubic Capacity:7CI

Modified Industry Description

4 SQUARE COVER FOR ONE TOGGLE AND ONE DUPLEX, 4 X 4 X 1/2 IN

AD Description

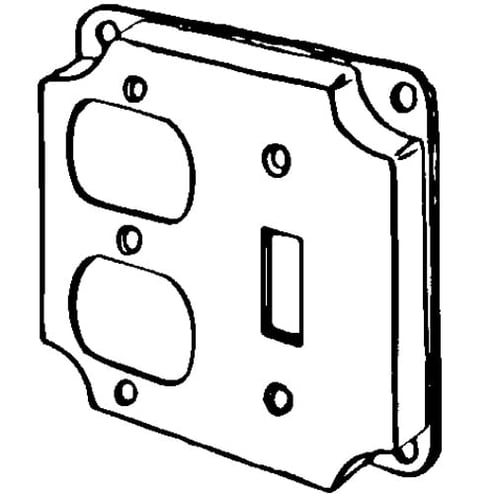

Appleton® ETP™ 8375N Raised Square Box Cover, 4 in L x 4 in W x 1/2 in D, Duplex Receptacle/Toggle Switch Cover, Steel

Brand Name	Appleton
Capacity	7
Country of Origin	US
Cubic_Capacity	7CU-IN
Cutout	1 - Duplex Receptacle 1- Toggle Switch
Finish	Galvanized
Material	Steel
Number_Of_Gangs	2
Shape	Square
Size	4 x 4 x 0.5Inches
Special Features	1/2 in raise for one toggle switch and one duplex receptacle Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC Extra mounting screws and nuts provided Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface Other boxes provided with flat ground tapped hole, except plenum boxes Single and double gang metallic outlet and switch boxes are acceptable for use in two hr fire rated walls Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
Standard	UL Standard 514A; UL Listed E2527; Nema OS-1
Sub_Brand	Appleton
Type	Raised
