Appleton Appleton GBL-1000
Appleton GBL-1000
Kirby Risk #: 492444
UPC: 68785535010, 687855350100, 00687855350100
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Features:4.87IN Dia X 0.83 IN Thick, For Rigid Conduit And IMC, Wire Range 14 to 1/0 AWG, Standard:UL, CSA, Size:4IN, Material:Zinc, Mounting:Set Screw, Temperature Rating:150CE
Modified Industry Description
4 IN ALUMINUM GROUNDING BUSHING
AD Description

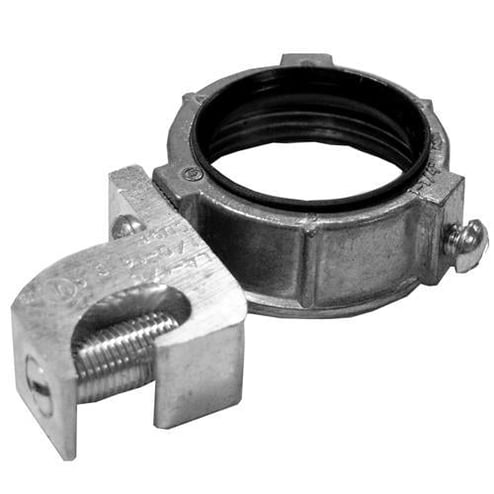

O-Z/Gedney NEER™ GBL-1000 Grounding Bushing, 14 to 1/0 AWG AC Cable, 4 in Trade, Zinc
Vendor Description
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Specifications
| Application |
Used with locknut to terminate rigid and IMC Conduit to an Enclosure, Provides a Smooth Pulling Surface
|
|---|---|
| Brand Name |
Appleton
|
| Conductor Range |
14-1/0
|
| Country of Origin |
IN
|
| Insulation |
Insulated
|
| Material |
Zinc
|
| Mounting |
Set Screw
|
| Special Features |
|
| Standard |
UL, CSA
|
| Sub_Brand |
Appleton
|
| Temperature_Rating |
302
|
| Trade_Size |
4
|
| Type |
Insulated Grounding Bushing
|
