Hubbell Hubbell HBL61CM64

Name: Hubbell HBL61CM64
Brand: Hubbell
SKU: 490705
Price: 135.40 USD
Availability: InStock

Hubbell HBL61CM64

Kirby Risk #: 490705

UPC: 78358580865, 783585808659, 00783585808659

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

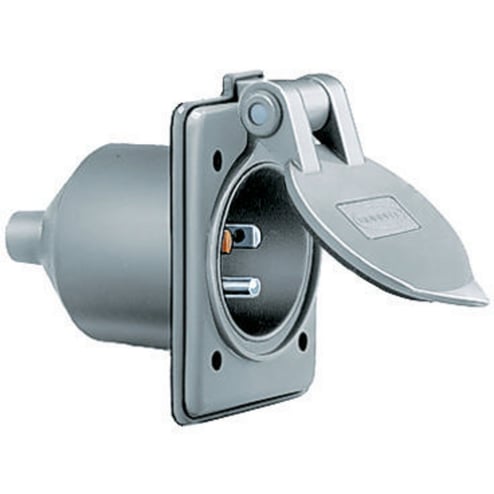

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Inlets,Weatherproofed, Marine, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Gray,Single Pack

Modified Industry Description

15A 125V - GRAY WEATHERPROOFED MARINE MALE INLET, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems HBL61CM64 Male Grounding Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Amperage Rating	15
Application	Marine Wiring Devices
Brand Name	Hubbell
Color	Yellow
Connection	Screw Terminals
Conductor Size	14 to #12AWG
Country of Origin	US
Dielectric_Strength	Withstands 2,000V minimum
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Insulation	Insulated Body
Material	Composite/Thermoplastic
Mounting	Flange
NEMA_Rating	NEMA 5-15P
Number_Of_Poles	2
Number_Of_Wires	3
Phase	Single Phase Motors
Poles	2
Size	Standard Sized
Special Features	#8-32 brass, multiple drive terminal screw material 14 to 10 AWG solid or stranded copper conductor terminal accommodation Brass power contacts Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise Nylon base, 0.04 in brass power contacts, stainless steel mounting screw 0.19 in Dia hole Terminals identified in accordance with UL 498 (brass, white, green) terminal identification Withstands 2000 VAC minimum dielectric voltage
Standard	NEMA WD1 and WD5, UL498
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 75
Type	Male Grounding
Voltage Rating	125
Wattage	1875
