Hubbell Hubbell HBL26CM10
Hubbell HBL26CM10
Kirby Risk #: 490696
UPC: 78358580819, 783585808192, 00783585808192
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

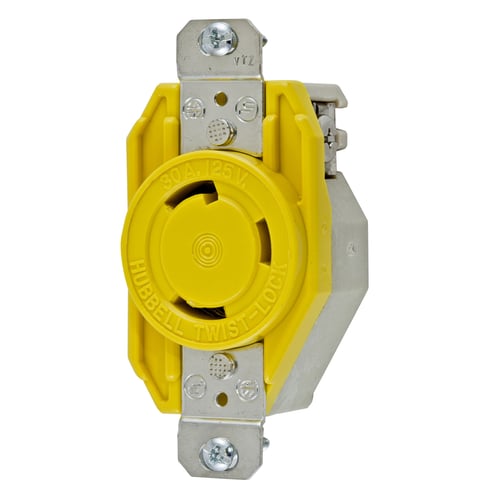

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, ScrewTerminal, Yellow
Modified Industry Description
30A 125V RECPT YELLOW MARINE
AD Description
Wiring Device-Kellems Twist-Lock® HBL26CM10 1-Phase Corrosion Resistant Grounding Single Standard Locking Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Marine Wiring Devices
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Screw Terminal
|
| Conductor Size |
#10 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L5-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Receptacle
|
| Voltage Rating |
125
|
| Wattage |
3,750
|
