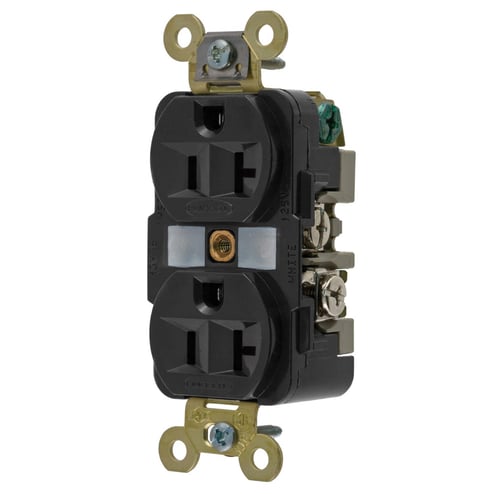

Hubbell Hubbell HBL5362BK


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R,Black, Single Pack

Modified Industry Description

20A 125V - BLACK DUPLEX RECEPTACLE, EXTRA HEAVY DUTY, INDUSTRIAL GRADE, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems HBL5362BK Grounding Extra Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Specifications

Amperage Rating
20
Application
Extra Heavy Duty
Brand Name
Hubbell
Color
Black
Connection
Back and Side Wired
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Specification
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Configuration
5-20R
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single
Size
Standard Sized Product
Special Features

  • 0.031 in brass ground contact
  • 0.036 in nickel plated brass by-pass power contact
  • 0.05 in nickel-plated brass mounting strap
  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Back wired ground terminal allows faster, easier installation
  • Certified for current interrupting at full rated current
  • Deep body design with circuit inside diameter face
  • Finder groove face
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Nickel plated brass clamping plate
  • NO 10 to 32 silicon bronze terminal screw and ground screw
  • Nylon face and PET base
  • One piece brass integral ground strap
  • Ratings are a permanent part of the device product identification
  • Stainless steel automatic self-grounding clip and zinc plated steel mounting screws
  • Terminals identified in accordance with UL 498 and CSA
  • Traditional face shape
  • UL 94V-2 top, UL 94V-0 base flammability
  • Withstand 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Extra Heavy Duty
Voltage Rating
125
Wattage
2000Watts
