Hubbell Hubbell HBL1556GY

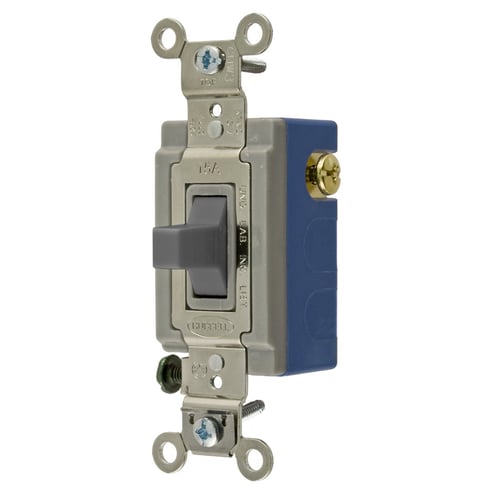

Hubbell HBL1556GY
Kirby Risk #: 490385
UPC: 78358543276, 783585432762, 00783585432762
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Momentary SinglePole Double Throw Center Off, 15A, 120/277V AC, Terminal Screws, Gray
Modified Industry Description
15 A 120/277 V MOMENTARY SINGLE POLE DOUBLE TROW CENTER OFF GRAY SWITCH
AD Description
Wiring Device-Kellems HBL® HBL1556GY Double Throw Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 15 A, 4155 W, 3-Position/Momentary Center Off/SPDT
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
15
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Gray
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Three Position Momentary Center Off
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
4.155
|
