Hubbell Hubbell HBL1223PL

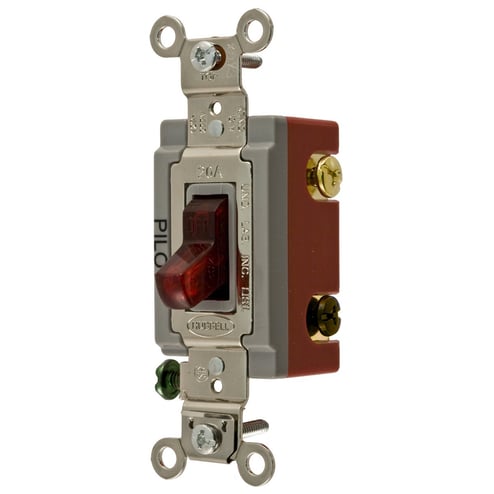

Hubbell HBL1223PL
Kirby Risk #: 490327
UPC: 78358543190, 783585431901, 00783585431901
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls, PilotLight Industrial Grade, Toggle Switches, General Purpose AC, Three Way,20A 120/277V AC, Back and Side Wired, Red
Modified Industry Description
RED 20A 120/277V 3W PILOT LIGHT
AD Description
Wiring Device-Kellems HBL1223PL 3-Way Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 20 A, 1/2 hp, 5540 W
Specifications
| Action |
SPDT
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
Back and Side Wired
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Maximum continuous 75°C and minimum -40°C without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL Listed
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Toggle
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
