Hubbell Hubbell HBL1201W
Hubbell HBL1201W
Kirby Risk #: 490180
UPC: 78358543014, 783585430140, 00783585430140
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A120/277V AC, Back and Side Wired, White
Modified Industry Description
15 A 120/277 V WHITE LOCKING SINGLE POLE SWITCH
AD Description

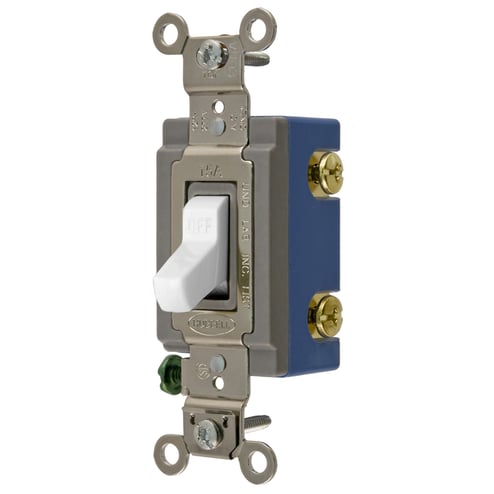

Wiring Device-Kellems HBL® HBL1201W Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 15 A, 4155 W, 2-Position
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
15
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
4.155
|
