Panduit Panduit PWMS-H25-C
Panduit PWMS-H25-C
Kirby Risk #: 490170
UPC: 07498358374, 074983583744, 30074983583745, 00074983583744
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

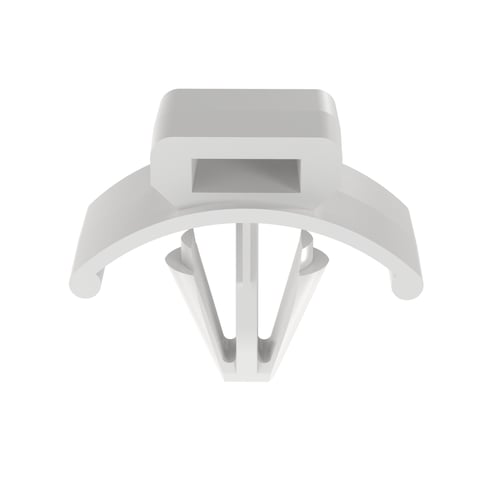

The winged push barb cable tie mount requires a 0.250" (6.5 mm) hole and is natural color. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 100.
Modified Industry Description
Cable Tie Mount, Winged Push Mount,
AD Description
Panduit® PWMS-H25-C Cable Tie Mount, 2-Way, Through Panel Hole/Winged Push Barb Mount, 0.19 in W Tie, Nylon 6.6, Natural
Specifications
| Application |
Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
|
|---|---|
| Brand Name |
Panduit
|
| Cable_Size |
NA
|
| Cable_Type |
Cable Tie Mount
|
| Color |
Natural
|
| Country of Origin |
USA
|
| Insulation |
Polyamide (PA)
|
| Material |
Nylon 6.6
|
| Mount_Size |
0.250
|
| Operating_Temperature |
185
|
| Package_Quantity |
1000.000
|
| Screw_Holes |
NA
|
| Special Features |
|
| Standard |
CE Compliant,UL Recognized: E136577, RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Cable Tie Mount
|
