Hubbell Hubbell HBL560R7W
Hubbell HBL560R7W
Kirby Risk #: 490112
UPC: 78358540572, 783585405728, 00783585405728
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Receptacle, 60A 3-Phase Wye 277/480VAC, 4-Pole 5-Wire Grounding , Terminal Screws, Red, Watertight
Modified Industry Description
60A 277/480V 4 POLE 5 WIRE FEMALE RECEPTACLE
AD Description

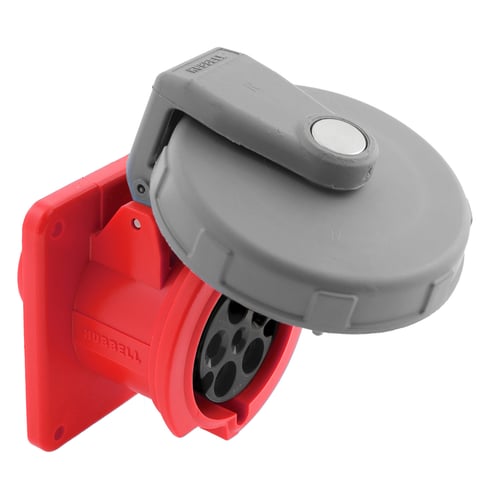

Wiring Device-Kellems HBL560R7W Female Single Flanged Watertight Pin and Sleeve Receptacle, 277/480Y VAC, 60 A, 4 Poles, 5 Wires, Red
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#8 AWG to #2 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Flanged
|
| Voltage Rating |
277/480
|
| Wattage |
28,800
|
