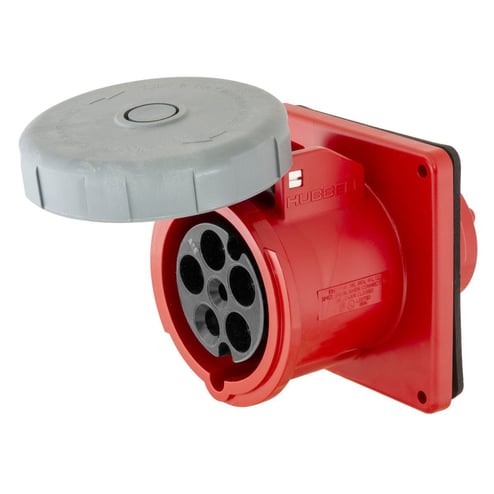

Hubbell Hubbell HBL520R7W


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female Receptacle, 20A 3-Phase Wye 277/480VAC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight

Modified Industry Description

20A 277/480V 4 POLE 5 WIRE FEMALE RECEPTACLE

AD Description

Wiring Device-Kellems HBL® HBL520R7W Grounding Single Flanged Standard Pin and Sleeve Receptacle, 277/480 VAC, 20 A, 4 Poles, 5 Wires, Red

Vendor Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.

Specifications

Amperage Rating
20
Application
High Ampacity Watertight Connections
Brand Name
Hubbell
Color
Red
Connection
Pressure Screw Terminals
Conductor Size
#14 AWG to #10 AWG
Country of Origin
US
Environmental_Conditions
Watertight
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
4
Number_Of_Wires
5
Phase
3
Size
Standard Sized Product
Special Features

  • Amperage/voltage rating and catalog number molded in housing for easy identification
  • Corrosion resistant self-closing gasketed cover
  • Feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands
  • Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
  • Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
  • Molded thermoset polyester provides high resistance to electrical tracking
  • Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
  • Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
  • Super tough insulated non-metallic house for impact and chemical resistance
  • Super tough plug shroud protects pins from deforming from physical abuse
  • Thermoset properties provide dimensional stability for this critical assembly
  • Withstands higher temperatures which may result from overload or arcing
Standard
UL 498, IEC 309-1 and 309-2
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Single Flanged
Voltage Rating
277/480
Wattage
9.6k
