Hubbell Hubbell HBL460R9W
Hubbell HBL460R9W
Kirby Risk #: 490076
UPC: 78358540493, 783585404936, 00783585404936
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 250VAC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Modified Industry Description
60A 250V 3 POLE 4 WIRE FEMALE RECEPTACLE
AD Description

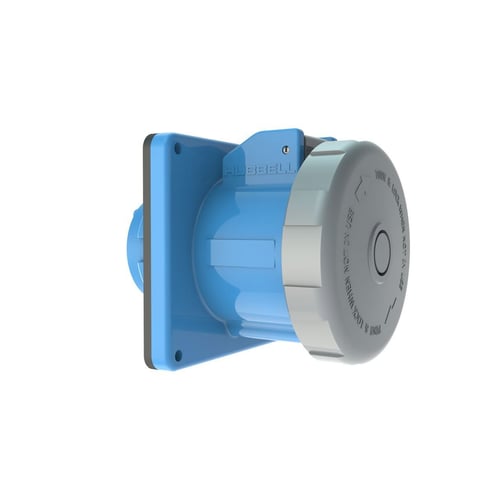

Wiring Device-Kellems HBL460R9W Female Grounding Single Flanged Watertight Pin and Sleeve Receptacle, 250 VAC, 60 A, 3 Poles, 4 Wires, Blue
Vendor Description
The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Blue
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#8 AWG to #2 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Single Flanged Watertight
|
| Voltage Rating |
250
|
| Wattage |
15k
|
