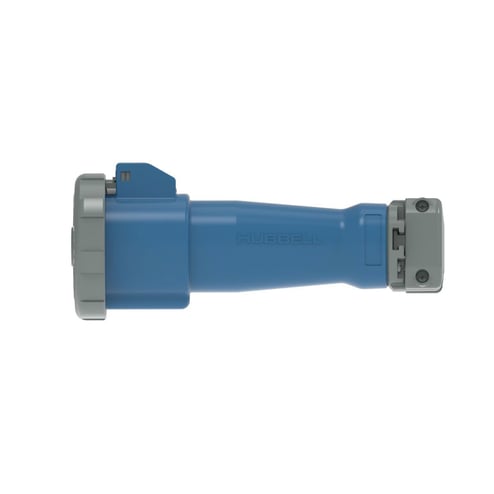

Hubbell Hubbell HBL460C9W


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female Connector Body, 60A 3-Phase Delta 250VAC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight

Modified Industry Description

60A 250V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY

AD Description

Wiring Device-Kellems HBL460C9W Female Grounding Watertight Pin and Sleeve Connector, 250 VAC, 60 A, 3 Poles, 4 Wires, Blue

Specifications

Amperage Rating
60
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Blue
Conductor Range
#12AWG - #8AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Environmental_Conditions
Water Tight
Grade
Industrial
Insulation
Insulated Body
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
4-Wire Grounding
Number_Of_Poles
3
Number_Of_Wires
4
Poles
3
Size
Standard
Special Features

  • 8 to 2 AWG copper wire terminal accommodation
  • HB or better per UL 94 or CSA 22.2 No. 0.17 flammability
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • Reinforced thermoplastic polyester covers and cord clamps
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 and the harmonized European standards cord accommodation
  • Self-closing gasketed cover
  • Sequential contact engagement to prevent a momentary over-voltage
  • Solid neoprene gaskets and glands
  • Super tough insulated non-metallic housing
  • Terminals identified in accordance with North american and IEC conventions terminal identification, identification and ratings are a permanent part of the device housing product identification
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Watertight per IEC 60309-1 moisture resistance
  • Withstands 3000 VAC dielectric voltage
Standard
UL 498, IEC 309-1 and 309-2
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Female Grounding Watertight
Voltage Rating
250
