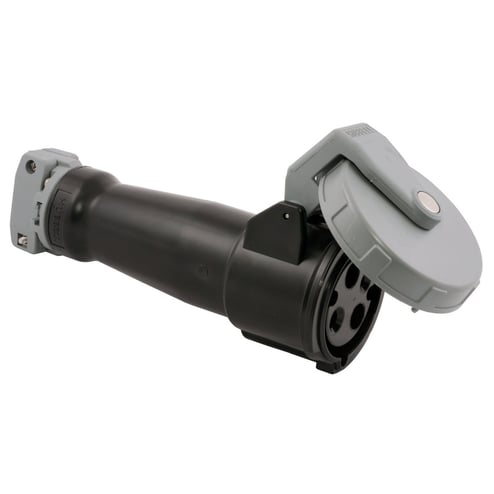

Hubbell Hubbell HBL460C5W
Hubbell HBL460C5W
Kirby Risk #: 490046
UPC: 78358540479, 783585404790, 00783585404790
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 60A 3-Phase Delta600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Modified Industry Description
60A 600V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL460C5W Female Grounding Watertight Pin and Sleeve Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#8AWG - #2AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Water Tight
|
| Grade |
Industrial
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Watertight
|
| Voltage Rating |
600
|
