Hubbell Hubbell HBL430B7W
Hubbell HBL430B7W
Kirby Risk #: 490012
UPC: 78358540447, 783585404479, 00783585404479
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

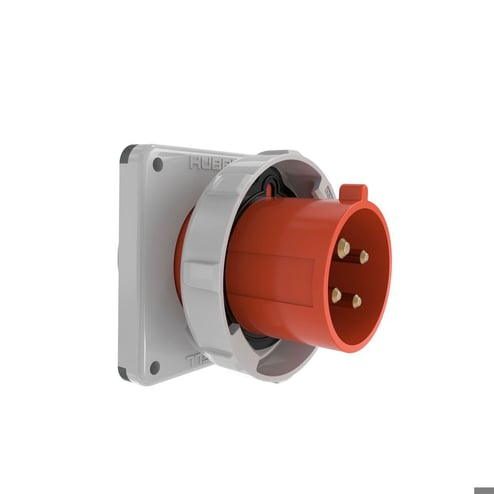

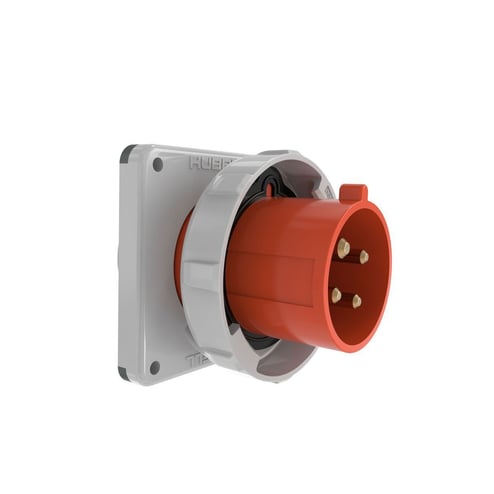

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Flanged Inlet, 30A 3-Phase Delta 480VAC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
Modified Industry Description
30A 480V 3 POLE 4 WIRE MALE FLANGED INLET
AD Description
Wiring Device-Kellems HBL430B7W Flanged Male Single Standard Watertight Pin and Sleeve Inlet, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Vendor Description
Hubbell® IEC 60309 pin and sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell® was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous of innovative features noted below.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Insulation |
Insulated Body
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
|
| Type |
Single Flanged Inlet
|
| Voltage Rating |
480
|
| Wattage |
14,400
|
