Hubbell Hubbell HBL4100C9W
Hubbell HBL4100C9W
Kirby Risk #: 489971
UPC: 78358540400, 783585404004, 00783585404004
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 100A 3-Phase Delta250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
Modified Industry Description
100A 250V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description

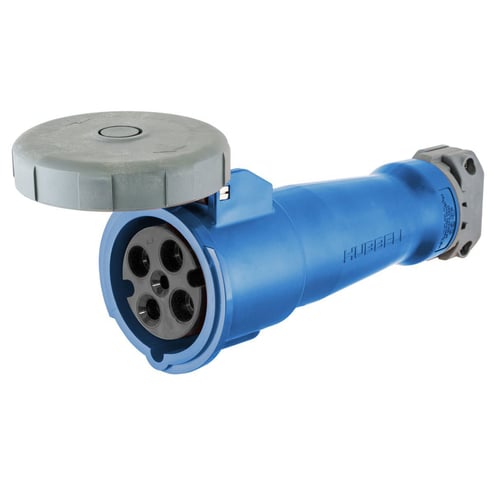

Wiring Device-Kellems HBL4100C9W 3-Phase Watertight Pin and Sleeve Connector, 250 VAC, 100 A, 3 Poles, 4 Wires, Blue
Vendor Description
The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting/line of sight disconnecting means.
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Blue
|
| Conductor Range |
#3AWG - #1/0AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
250
|
