Hubbell Hubbell HBL330R4W
Hubbell HBL330R4W
Kirby Risk #: 489939
UPC: 78358540361, 783585403618, 00783585403618
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Yellow, Watertight
Modified Industry Description
30A 125V 2 POLE 3 WIRE FEMALE RECEPTACLE
AD Description

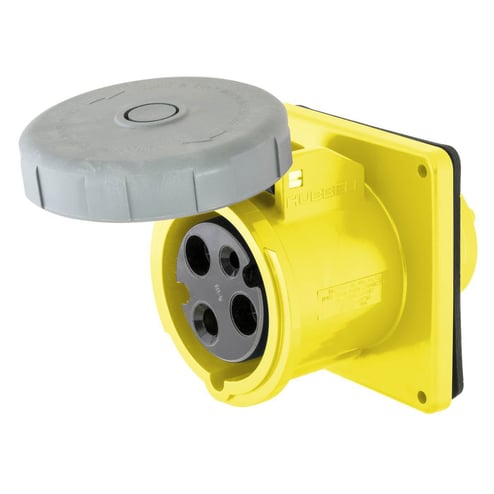

Wiring Device-Kellems HBL330R4W Female Single Flanged Watertight Pin and Sleeve Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Flanged
|
| Voltage Rating |
125
|
| Wattage |
3,750
|
