Hubbell Hubbell HBL7465V
Hubbell HBL7465V
Kirby Risk #: 489410
UPC: 78358523728, 783585237282, 00783585237282
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

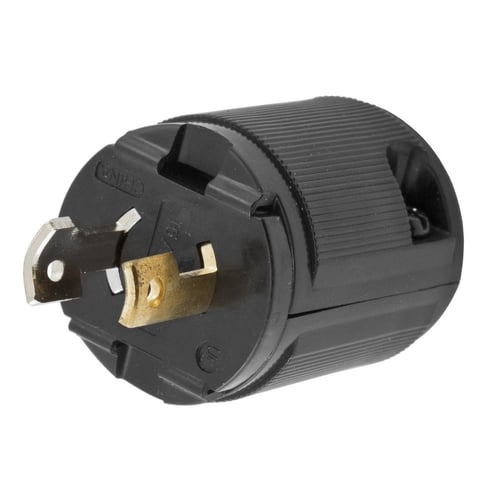

Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Valise, Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, ML-1P, ScrewTerminal, Black
Modified Industry Description
15A 125V - VALISE LOCKING MALE PLUG, 2 Pole, 2 Wire, MIDGET
AD Description
Wiring Device-Kellems Twist-Lock® Valise® HBL7465V Male Non-Grounding Standard Midget Locking Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Black
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
14 to #12AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
CN
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
ML-1P
|
| NEMA_Rating |
NEMA ML-1P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
2
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Male Non-Grounding Standard
|
| Voltage Rating |
125
|
| Wattage |
1875
|
