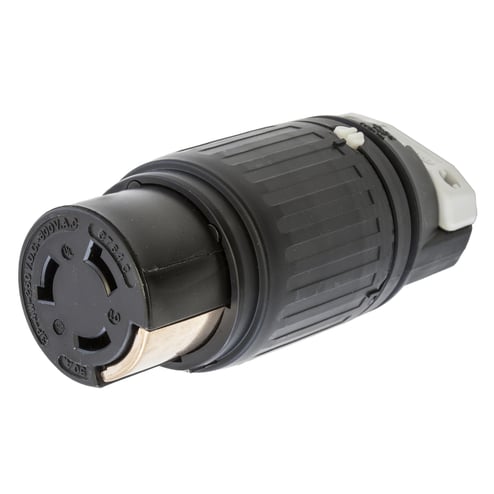

Hubbell Hubbell HBL3764C
Hubbell HBL3764C
Kirby Risk #: 489197
UPC: 78358523642, 783585236421, 00783585236421
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock, Industrial,Female Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding,Non-NEMA, Screw Terminal, Black- 3700 Series
Modified Industry Description
50A 250/600V - LOCKING FEMALE CONNECTOR, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3764C Grounding Heavy Duty Locking Connector, 600 VAC, 250 VDC, 50 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#6AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Non-Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Connector Body
|
| Voltage Rating |
600/250
|
