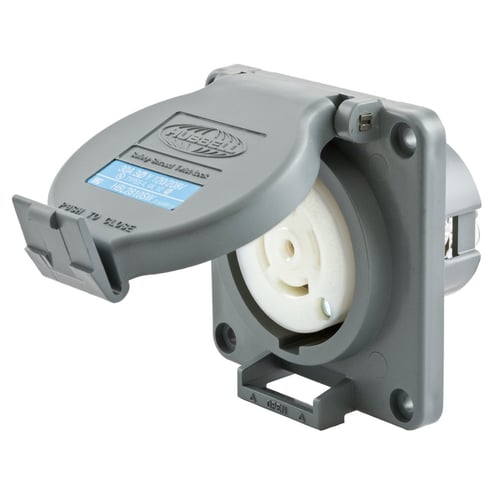

Hubbell Hubbell HBL2810SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-WireGrounding, L21-30R, Screw Terminal, Gray

Modified Industry Description

30A 120/208V RECPT GRAY WATERTIGHT SAFETY SHROUD

AD Description

Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2810SW Heavy Duty Flanged Grounding Standard Single Watertight Locking Receptacle, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, Gray/White

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial Shrouded Watertight
Brand Name
Hubbell
Color
Gray
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
IP20
Environmental_Conditions
Watertight
Material
PBT
Mounting
Screw Mount
NEMA_Rating
NEMA L21-30R
Number_Of_Poles
4
Number_Of_Wires
5
Phase
3
Size
Standard Sized Product
Special Features

  • 0.031 in brass contact spring
  • 0.031 in brass ground contact
  • 0.031 in brass spring binding plate
  • 2000 VAC minimum dielectric voltage withstand
  • 3-phase, star connection 120/208 VAC
  • 30 A 10 AWG terminal accommodation
  • 302/304 multi-drive stainless steel mounting screw
  • 302/304 stainless steel cover hinge pin
  • 302/304 stainless steel cover spring
  • 5-wire grounding
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Closed cell neoprene foam lid and flange gasket material
  • Gray Valox® housing and flange material
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Impact modified PBT housing
  • Natural white nylon body contact carrier material
  • Shrouded watertight construction
  • Steel rivet material
  • UL type 4X environmental seal while in use and when closed
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Shrouded Watertight
Voltage Rating
120/208
Wattage
6,240
