Hubbell Hubbell HBL2740SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-WireGrounding, L17-30R, Screw Terminal, Gray

Modified Industry Description

30A 600V RECPT GRAY WATERTIGHT SAFETY SHROUD

AD Description

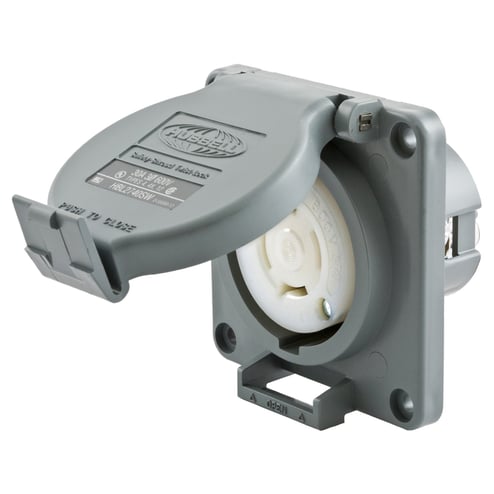

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2740SW Heavy Duty Non-Grounding Watertight Locking Connector, 600 VAC, 30 A, 3 Poles, 2 Wires, Gray/White

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial Shrouded Watertight
Brand Name
Hubbell
Color
Gray/White
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Watertight
Grade
Commercial/Industrial
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA L5-15R
Number_Of_Poles
3
Number_Of_Wires
2
Phase
3
Size
Standard Sized Product
Special Features

  • #10-32 brass (green) ground screw
  • #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • 0.031 in brass contact spring, 0.031 in brass spring binding plate
  • 0.031 in brass ground contact, steel rivet
  • 30 A, 10 AWG terminal accommodation
  • 302/304 stainless steel cover hinge pin, gray Valox® housing and flange
  • 302/304 stainless steel multi-drive mounting screw
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer
  • Closed cell neoprene foam flange gasket, closed cell neoprene foam lid gasket
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
  • Natural white nylon body contact carrier material
  • Steel, nickel plated 0.08 in curved, scalloped terminal clamp
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • UL type 4X environmental seal while-in use and when closed
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Heavy Duty Non-Grounding Watertight
Voltage Rating
600
Wattage
18
