Hubbell Hubbell HBL2713SW


Description

Industry Description

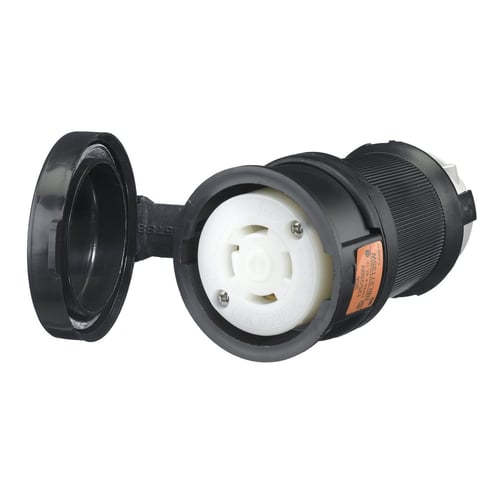

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Female Connector Body, 30A 125/250V, 3-Pole 4-WireGrounding, L14-30R, Screw Termial, Black and White

Modified Industry Description

30A 125/250V CONN BLACK WHITE WATERTIGHT SAFETY SHROUD

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2713SW Grounding Heavy Duty Locking Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Conductor Range
#12AWG - #8AWG
Connection
Pressure Screw Terminal
Country of Origin
US
Enclosure
IP66
Environmental_Conditions
Water Tight
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA L14-30R
Number Of Conductors
4-Wire Grounding
Number_Of_Poles
3
Number_Of_Wires
4
Size
Standard
Special Features

  • 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • 30 A, 10 AWG terminal accommodation
  • Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
  • Clear polycarbonate terminal retainer
  • Closure cap is included for environmental seal when device is not in use
  • Impact modified PBT
  • Stainless steel zinc plated cord clamp screw, body holding screw
  • Steel nickel plated terminal clamp
  • Superior cord grip design protects terminations from excess strain
  • UL type 4X environmental seal protects connection while-in use
  • White Valox® cord clamp
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Heavy Duty
Voltage Rating
125/250
