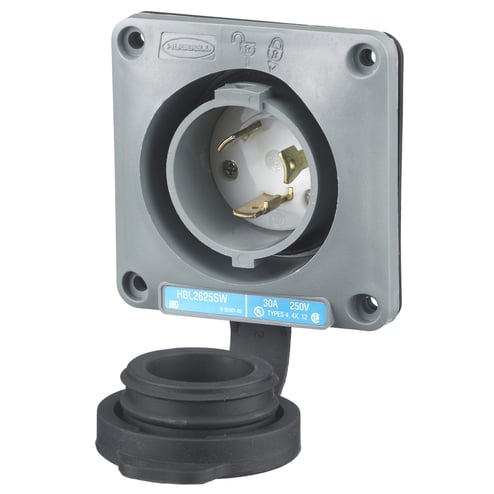

Hubbell Hubbell HBL2625SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P,Screw Terminal, Gray

Modified Industry Description

30A 250V FLANGED INLET GRAY WATERTIGHT SAFETY SHROUD

AD Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2625SW 1-Phase Grounding Standard Single Shrouded Watertight Locking Flanged Inlet, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray/White

Specifications

Amperage Rating
30
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Gray/White
Connection
Screw Terminals
Conductor Size
#12AWG to #8AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Watertight
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
L6-30P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • #32-10 brass terminal screw
  • 0.08 in steel nickel plated terminal clamp
  • 1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • 12 to 8 AWG wire
  • 30 A 10 AWG terminal accommodation
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
  • Brass blade
  • Catalog number and color coded voltage rating are visible even when in use
  • Clear polycarbonate terminal retainer
  • Closure cap is included for environmental seal when device is not in use
  • Gray Valox® flanged casing
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Natural white nylon body contact carrier
  • Screw mount
  • Stainless steel 302/304 multi-drive mounting screws
  • Stainless steel, multi-drive body holding screws
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Shouded Watertight Single Inlet
Voltage Rating
250
Wattage
7.5k
