Hubbell Hubbell HBL2433SW
Hubbell HBL2433SW
Kirby Risk #: 488589
UPC: 78358523146, 783585231464, 00783585231464
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

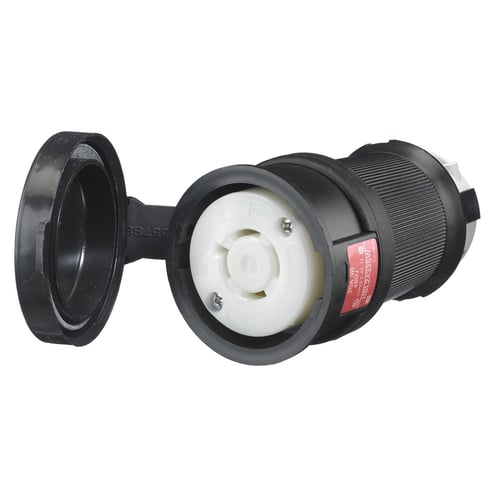

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole4-Wire Grounding, L16-20R, Screw Terminal, Black and White
Modified Industry Description
20A 480V - WATERTIGHT SAFETY SHROUD LOCKING FEMALE CONNECTOR, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2433SW 3-Phase Female Grounding Shrouded Standard Watertight Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L16-20R
|
| NEMA_Rating |
L16-20R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75 DEG C; Minimum Continuous: -40 DEG C w/o impact, -25DEG with impact.
|
| Type |
Shrouded Watertight
|
| Voltage Rating |
480
|
