Hubbell Hubbell HBL2415SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 20A 125/250V, 3-Pole 4-Wire Grounding,L14-20P, Screw Terminal, Gray

Modified Industry Description

20A 125/250V FLANGE WATERTIGHT SAFETY SHROUD

AD Description

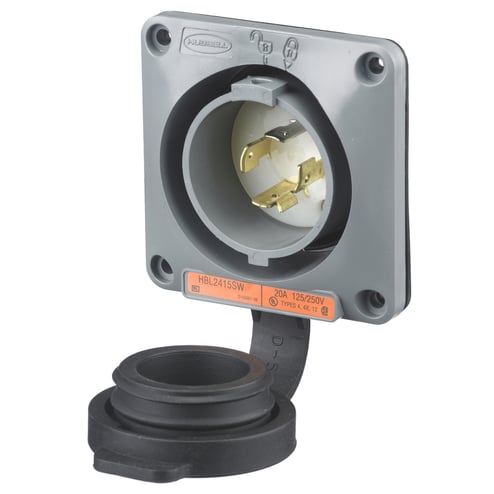

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2415SW Extra Heavy Duty Grounding Locking Flanged Inlet, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Gray/White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Color
Gray/White
Connection
Screw Terminals
Conductor Size
#12AWG to #10AWG
Country of Origin
US
Dimensions
3.75 in H x 3.75 in W x 2.44 in D
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Watertight
Insulation
Insulated Body
Length1
4.0000
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA L14-20P
Number_Of_Poles
3
Phase
1
Size
Standard Sized Product
Special Features

  • 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • 16 to 8 AWG solid or stranded copper wire terminal accommodation
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Closure cap is included for environmental seal when device is not in use
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Extra Heavy Duty Grounding
Voltage Rating
125/250
Wattage
5,000
