Hubbell Hubbell HBL2411SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Male Plug 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20P,Screw Terminal, Black and White

Modified Industry Description

20A 125/250V MALE BLACK WHITE WATERTIGHT SAFETY SHROUD

AD Description

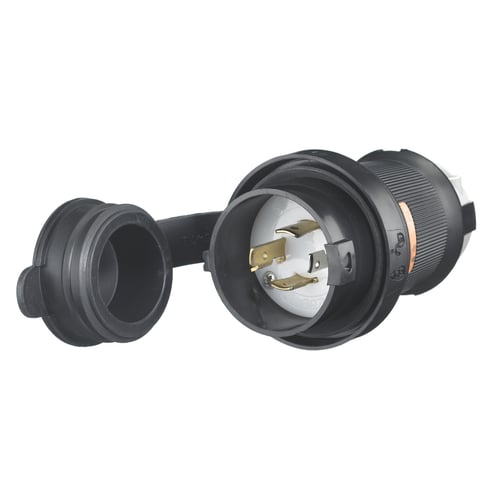

Wiring Device-Kellems Twist-Lock® HBL2411SW Extra Heavy Duty Grounding Safety Shroud Locking Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Pressure Screw Terminal
Conductor Size
#12AWG to #10AWG
Cord_Type
All Listed Portables
Country of Origin
US
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Watertight
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA L14-20P
Number_Of_Poles
3
Number_Of_Wires
4
Phase
1
Size
Standard Sized
Special Features

  • #10-32 brass (Phillips/slotted/Robertson) terminal screws
  • 14 to 10 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Brass blade, terminal screw and ground screw
  • Clear polycarbonate terminal retainer
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Natural white nylon blade holder material, cord clamp material
  • Steel zinc plated cord clamp screw, body holding screw
  • Superior cord grip design protects terminations from excess strain
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Extra Heavy Duty Grounding Safety Shroud
Voltage Rating
125/250
Wattage
5,000
