Hubbell Hubbell HBL2410SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Gray

Modified Industry Description

20 A 125/250 V 3 Pole 4 Wire Grounding L14 20R Gray TwistLock WatertightSafety Shroud Receptacle

AD Description

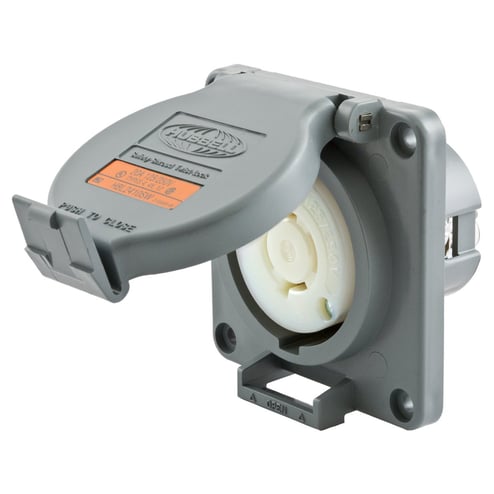

Hubbell® Twist-Lock® Safety-Shroud® HBL2410SW Shrouded Single Watertight Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Gray

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial Shrouded Watertight
Brand Name
Hubbell
Color
Gray
Connection
Screw Terminal
Conductor Size
#14 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Watertight
Material
PBT
Mounting
Screw Mount
NEMA_Configuration
L14-20R
NEMA_Rating
NEMA L14-20R
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Single
Poles
3
Size
Standard Sized
Special Features

  • 0.031 in brass ground contact
  • 14 to 8 AWG copper only terminal accommodation
  • 2000 VAC minimum dielectric voltage withstand
  • 302/304 multi-drive stainless steel mounting screw
  • 302/304 stainless steel cover spring mounting plate
  • 4-wire grounding
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Gray Valox® housing and flange material
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon body contact carrier material
  • NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • Shrouded watertight construction
  • Steel rivet material
  • Steel, nickel plated 0.08 in curved, scalloped terminal clamp material
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • VO per UL94 or CSA 22.2 NO 0.6 flammability
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Shrouded Single Watertight
Voltage Rating
125/250
Wattage
5000Watts
