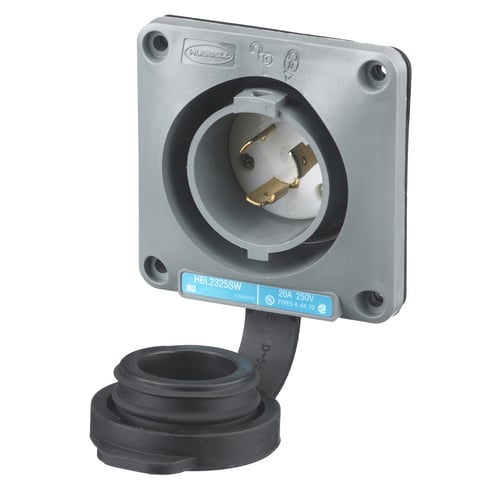

Hubbell Hubbell HBL2325SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P,Screw Terminal, Gray

Modified Industry Description

20A 250V - GRAY FLANGED INLET, WATERTIGHT SAFETY SHROUD, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2325SW 1-Phase Grounding Standard Watertight Locking Flanged Inlet, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray/White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Gray/White
Connection
Screw Terminals
Conductor Size
#12AWG to #10AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Watertight
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
L6-20P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 1-piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Closure cap is included for environmental seal when device is not in use
  • UL type 4X environmental seal protects connection while in use
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
Type
Shouded Watertight Single Inlet
Voltage Rating
250
Wattage
5,000
