Hubbell Hubbell HBL2320SW
Hubbell HBL2320SW
Kirby Risk #: 488536
UPC: 78358523108, 783585231082, 00783585231082
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Receptacle, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Screw Terminal,Gray
Modified Industry Description
20A 250V RECPT GRAY
AD Description

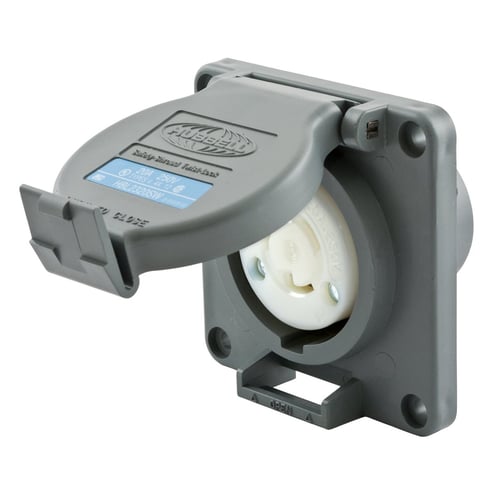

Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2320SW Heavy Duty Flanged Grounding Standard Single Watertight Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial Shrouded Watertight
|
| Brand Name |
Hubbell
|
| Color |
Gray/White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Watertight
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L6-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Receptacle
|
| Voltage Rating |
250
|
| Wattage |
5,000
|
