Hubbell Hubbell HBL2315SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20P,Screw Terminal, Gray

Modified Industry Description

20A 125V - GRAY FLANGED INLET, WATERTIGHT SAFETY SHROUD, 2 POLE, 3 WIRE

AD Description

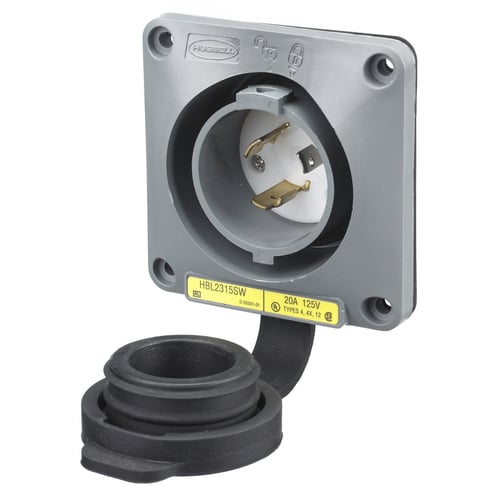

Wiring Device-Kellems Twist-Lock® HBL2315SW Extra Heavy Duty Grounding Locking Flanged Inlet, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray/White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Gray/White
Connection
Screw Terminals
Conductor Size
#12AWG to #10AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Watertight
Grade
Industrial
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA L5-20P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
  • 16 to 8 AWG terminal accommodation
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Closure cap is included for environmental seal when device is not in use
  • NO 10 to 32 brass terminal screw
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Extra Heavy Duty Grounding
Voltage Rating
125
Wattage
2,500
