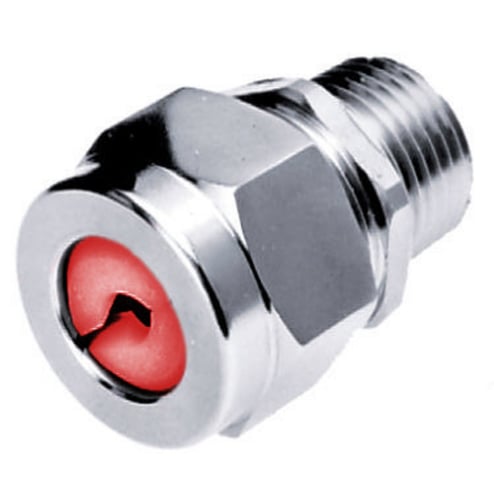

Hubbell Hubbell SHC1021ZP


Description

Industry Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .19-.25", 1/2", Steel

Modified Industry Description

0.19 TO 0.25 IN - 1/2 IN STRAIGHT CORD CONNECTOR, STEEL

AD Description

Wiring Device-Kellems SHC1021ZP Straight Male Liquidtight Conduit Connector With Locknut, 1/2 in Trade, 0.19 to 0.25 in Cable Openings, Steel, Machined

Specifications

Application
Straight Male- Form 2
Brand Name
Hubbell
Color
Red
Conductor Range
.19-.25
Connection
Male NPT
Country of Origin
CN
Environmental_Conditions
Suitable for use in wet locations when used with a listed nylon washer between box and fitting.
Finish
Machined
Material
Steel
Mounting
Locknut or Tapped Opening
NEMA_Rating
NEMA Type 4, 4X, 12 and 13
Number Of Conductors
Jacketed UL Listed Cable Only
Special Features

  • Connector body is a one-piece design with machined threads, a tapered interior seats the bushing evenly for a liquidtight seal
  • For larger size cord, NPT hub sizes 1 to 2 in, Hubbell® utilizes malleable iron connectors which provide excellent holding and liquidtight performance
  • IP66 ingress protection
  • Machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads
  • Made of machined steel
  • NEMA 4/4X/12/13 rated enclosure
  • Zinc plated cord connector provides the strength and corrosion resistance
Standard
UL 514B
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Minimum -30 DEG F to 225 DEG F (-43 DEG C to 107 DEG C)
Trade_Size
1/2
Type
Straight Male
Width_2
5.3800
Width_3
11.6250
Width_4
11.6250
