Hubbell Hubbell HBL9361


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding,125V, 50A, 5-50P, Bl ck, Single Pack,

Modified Industry Description

50A 125V MALE BLACK HEAVY DUTY ANGLED

AD Description

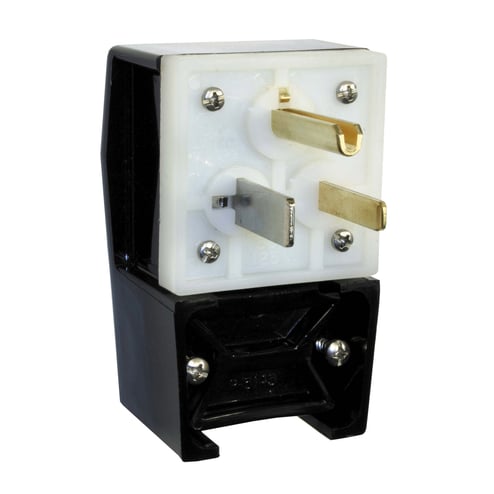

Wiring Device-Kellems Insulgrip® HBL9361 Angle Style Standard Grounding Straight Blade Plug, 125 VAC, 50 A, 2 Poles, 3 Wires, Black/White

Vendor Description

For more than 100 years, the Hubbell® name has been synonymous with innovation. As a pioneer in the development of new technologies, Hubbell® wiring device has always strived to improve performance safety and functionality across our entire product line many Hubbell® innovations have become the industry standard for protecting people, increasing value and extending product life cycle for maximum sustainability. Insulgrip® is yet another example of a Hubbell® innovation that has become the industry standard. Insulgrip® products are synonymous with Hubbell® ongoing commitment to discovering ways to make products safer and Last longer. By encasing wiring devices in tough nylon housings, Insulgrip® devices ensure high impact, heat and chemical resistance While insulating current carrying components from the user for maximum safety. Insulgrip®'s cord gripping design clamps conductors, not just the cable jacket, making it the industry's most powerful cord grip with superior strain relief. Each Insulgrip® device is manufactured with roomy, separate wiring chambers to insulate conductors and an individually molded face to keep out dust and debris that can cause contamination over time.

Specifications

Amperage Rating
50
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Black/White
Connection
Terminal Screws
Conductor Size
#12 AWG to #4 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA 5-50P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized
Special_Features

  • 12 to 4 AWG solid or stranded copper conductor terminal accommodation
  • Beveled housing prevents snagging
  • Catalog number is visible on the device while-in use for easy identification
  • Certified for current interrupting at full rated current
  • Cord mounted
  • Corrosion resistant
  • Grounding plug
  • Individual wiring terminals completely enclosed in their own separate chambers
  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Multiple drive screws provide screwdriver versatility
  • Powerful off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminations
  • Powerful, off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminals
  • Reinforced thermoplastic polyester blade holder, retainer and cord clamp, brass contact blade and ground contact blade, zinc plated steel terminal screw plated steel ground screw brass box terminal
  • Ribbed nylon housing is impact and chemical resistant
  • Roomy wiring chamber provides ample space for wiring
  • Transparent angled wiring entrance holes permit straight in conductor insertion
  • VARI-SIZE® pointer set to smaller than gauge position
  • Withstands 2000 VAC dielectric voltage

Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Angle Style Standard Grounding
Voltage Rating
125
Wattage
6,250
