Hubbell Hubbell CS6365C
Hubbell CS6365C
Kirby Risk #: 488233
UPC: 78358582799, 783585827995, 00783585827995
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Modified Industry Description
4 WIRE, 50A, 125/250V - 3 POLE - LOCKING MALE PLUG
AD Description

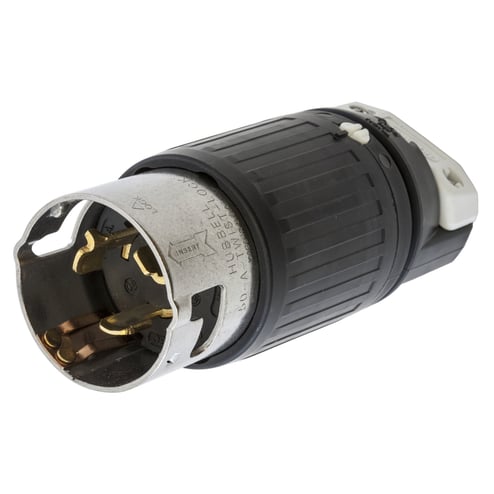

Wiring Device-Kellems Twist-Lock® Insulgrip® CS6365C Grounding Locking Plug, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Power Connection
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Terminal Screws
|
| Conductor Size |
#10AWG to #6AWG
|
| Cord_Type |
All Listed Portable
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
1
|
| Poles |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL/CSA
|
| Sub_Brand |
Twist-Lock Devices
|
| Temperature_Rating |
-40 to 75
|
| Type |
Male Plug
|
| Voltage Rating |
125/250
|
| Wattage |
12,500
|
