Hubbell Hubbell CS6364C


Description

Modified Industry Description

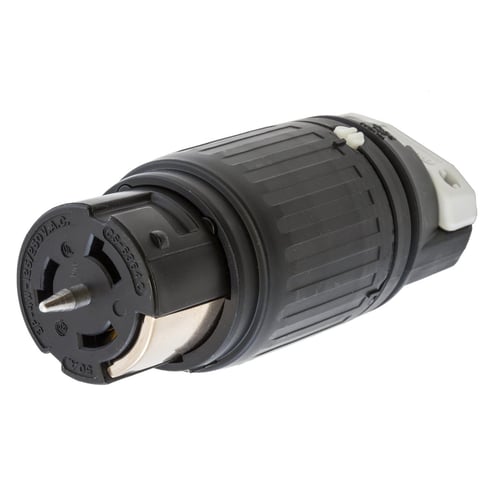

4 WIRE, 50A, 125/250V - 3 POLE - LOCKING FEMALE CONNECTOR

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® CS6364C Grounding Heavy Duty Locking Connector, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black/White

Specifications

Amperage Rating
50
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Conductor Range
#6AWG
Connection
Pressure Screw Terminal
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
Non NEMA
NEMA_Rating
Non-NEMA
Number Of Conductors
4-Wire Non-Grounding
Number_Of_Poles
3
Number_Of_Wires
4
Poles
3
Size
Standard
Special Features

  • 10 to 6 AWG terminal accommodation
  • 302/304 stainless steel assembly material, Supertough nylon (white) latches material
  • 302/304 stainless steel cord clamp screw
  • Black nylon body contact carrier, 0.04 in brass contact spring material, 0.1 in brass spring binding plate
  • Black nylon contact nose, glass reinforced pet terminal retainer
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Brass ground contact material, molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Copper box terminals, Rynite (black) contact holder
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Neoprene seal material, nylon seal cup material
  • Oversized contacts minimize operating temperature
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Steel pressure screw zinc plate ground screw
  • Steel pressure screw zinc plate terminal screw
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • Thermoplastic polyester interior provides heat resistance and impact strength
Standard
UL498
Sub_Brand
50A Twist-Lock
Temperature_Rating
-40 to 75
Type
Grounding Heavy Duty
Voltage Rating
125/250
