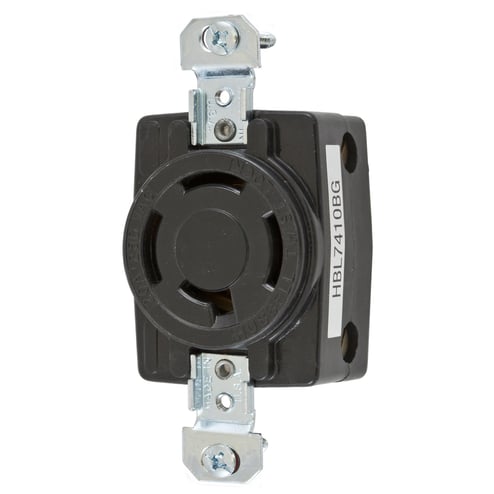

Hubbell Hubbell HBL7410BG


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock, Industrial,Flush Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding,Non-NEMA, Screw Terminal, Black

Modified Industry Description

20A 250V - BLACK LOCKING Flush Receptacle, 3 Pole, 4 Wire

AD Description

Wiring Device-Kellems Twist-Lock® HBL7410BG 3-Phase Flush Mount Heavy Duty Non-Grounding Standard Single Locking Receptacle, 250 VAC, 20 A, 3 Poles, 3 Wires, Black

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#12 AWG to #10 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Screw Mount
NEMA_Configuration
Non NEMA
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Three
Poles
3
Size
Standard Sized
Special Features

  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Face color coding by voltage facilitates locating and mating of proper devices
  • High impact, abuse resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Single
Voltage Rating
250
Wattage
5000Watts
