Hubbell Hubbell HBL9330
Hubbell HBL9330
Kirby Risk #: 487763
UPC: 78358501523, 783585015231, 00783585015231
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Flush Receptacle, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V,6-30R, Black, Single Pack
Modified Industry Description
30A 250V - BLACK FLUSH RECEPTACLE, 2 POLE, 3 WIRE
AD Description

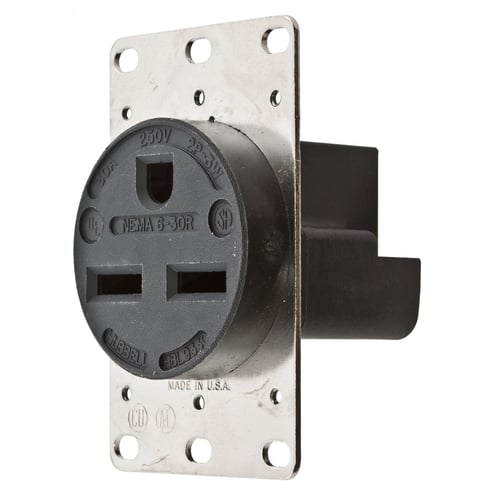

Wiring Device-Kellems HBL9330 Grounding Heavy Duty Single Straight Blade Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#10 AWG to #4 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
6-30R
|
| NEMA_Rating |
NEMA 6-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty Single
|
| Voltage Rating |
250
|
| Wattage |
7500Watts
|
