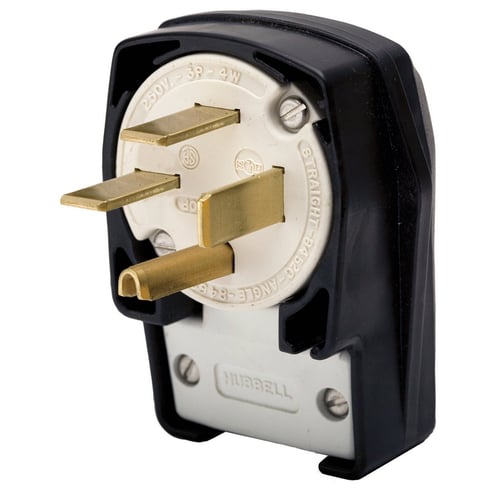

Hubbell Hubbell HBL8452C


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 50A3 Phase 250V AC, 15-50P, Black, Single Pack

Modified Industry Description

50A 250V - BLACK MALE PLUG, 3 POLE, 4 WIRE, ANGLED

AD Description

Wiring Device-Kellems Insulgrip® HBL8452C Grounding Standard Straight Blade Plug, 250 VAC, 50 A, 3 Poles, 4 Wires, Black/White

Specifications

Amperage Rating
50
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Black and White
Connection
Terminal Screws
Conductor Size
#12 AWG to #4 AWG
Cord_Type
All Portable
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
15-50P
NEMA_Rating
15-50P
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Three
Poles
3
Size
Standard Sized
Special_Features

  • 0.1 in brass contact blades, 0.075 in ground contact blade
  • 14 to 12 AWG solid or stranded copper conductor terminal accommodation
  • Black and white color
  • Certified for current interrupting at full rated current
  • Glass reinforced PET blade holder and retainer material, glass reinforced polyester cord clamp
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Steel zinc plated terminal screw, 3/8 in Allen head, plated steel ground screw
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • UL 94-HB or better flammability rating
  • Withstands 2000 VAC dielectric voltage

Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Insulgrip
Voltage Rating
250
Wattage
12500
