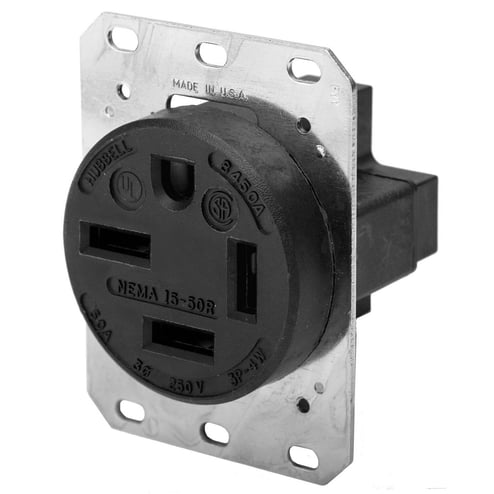

Hubbell Hubbell HBL8450A
Hubbell HBL8450A
Kirby Risk #: 487613
UPC: 78358501515, 783585015156, 00783585015156
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 50A 3 Phase250V AC, 15-50R, Black, Single Pack
Modified Industry Description
50A 250V - BLACK FLUSH RECEPTACLE, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems HBL® HBL8450A Heavy Duty Single Standard Straight Blade Receptacle, 250 VAC, 50 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#10 AWG to #4 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
15-50R
|
| NEMA_Rating |
15-50R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single
|
| Voltage Rating |
250
|
| Wattage |
12500Watts
|
