Hubbell Hubbell HBL7513C
Hubbell HBL7513C
Kirby Risk #: 487523
UPC: 78358501510, 783585015101, 00783585015101
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

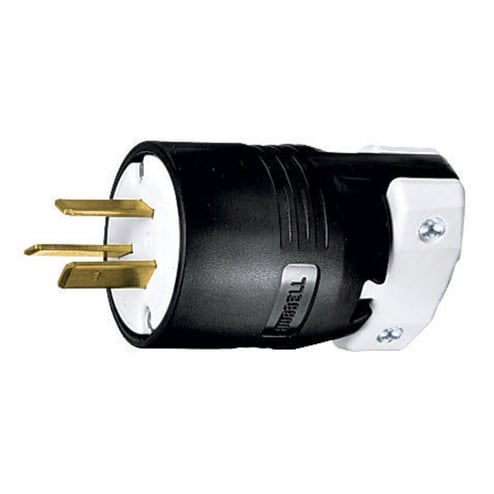

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/CommercialGrade, Straight, 3-Pole 3-Wire Non Grounding,50A 125/250V, 10-50P , Black, Single Pack
Modified Industry Description
50A 125/250V - BLACK MALE PLUG, 3 POLE, 3 WIRE
AD Description
Wiring Device-Kellems HBL7513C 1-Phase Heavy Duty Non-Grounding Male Straight Blade Plug, 125/250 VAC, 50 A, 3 Poles
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Connection |
Terminal Screws
|
| Conductor Size |
#12 AWG to #4 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
10-50P
|
| NEMA_Rating |
10-50P
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
125/250
|
| Wattage |
12500
|
