Hubbell Hubbell HBL8315CT
Hubbell HBL8315CT
Kirby Risk #: 487291
UPC: 78358518005, 783585180052, 00783585180052
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug,Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V,5-20P, Clear, Single Pack
Modified Industry Description
20A 125V MALE CLEAR HOSPITAL STRAIGHT
AD Description

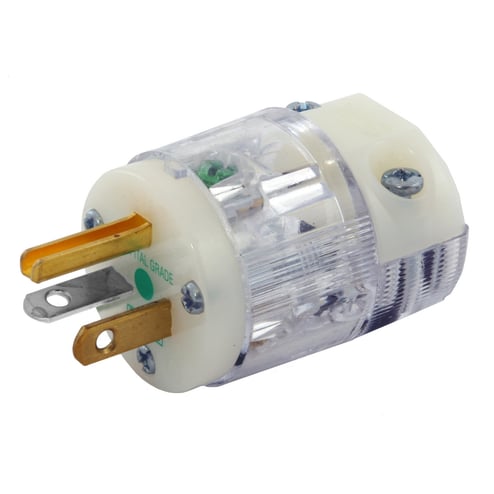

Hubbell® Insulgrip® HBL8315CT Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Clear
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Hospital Grade
|
| Brand Name |
Hubbell
|
| Color |
Clear
|
| Connection |
Terminal Screws
|
| Conductor Size |
#18 AWG to #10 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Hospital
|
| Material |
Polycarbonate
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA 5-20P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding
|
| Voltage Rating |
125
|
| Wattage |
2,000
|
