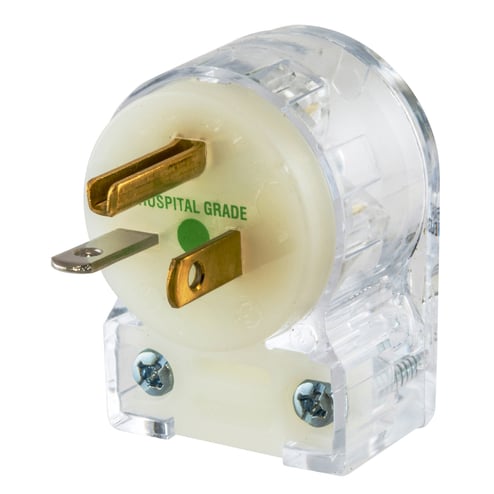

Hubbell Hubbell HBL8315CAT


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug,Insulgrip, Hospital Grade, Angled, 2-Pole 3-Wire Grounding, 50A 125V, 5-20P, Clear, Single Pack

Modified Industry Description

20A 125V MALE CLEAR HOSPITAL ANGLED

AD Description

Wiring Device-Kellems Insulgrip® HBL8315CAT Angle Style Standard Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Clear

Vendor Description

For more than 100 years, the Hubbell® name has been synonymous with innovation. As a pioneer in the development of new technologies, Hubbell® wiring device has always strived to improve performance safety and functionality across our entire product line many Hubbell® innovations have become the industry standard for protecting people, increasing value and extending product life cycle for maximum sustainability. Insulgrip® is yet another example of a Hubbell® innovation that has become the industry standard. Insulgrip® products are synonymous with Hubbell® ongoing commitment to discovering ways to make products safer and Last longer. By encasing wiring devices in tough nylon housings, Insulgrip® devices ensure high impact, heat and chemical resistance While insulating current carrying components from the user for maximum safety. Insulgrip®'s cord gripping design clamps conductors, not just the cable jacket, making it the industry's most powerful cord grip with superior strain relief. Each Insulgrip® device is manufactured with roomy, separate wiring chambers to insulate conductors and an individually molded face to keep out dust and debris that can cause contamination over time.

Specifications

Amperage Rating
20
Application
Hospital Grade
Brand Name
Hubbell
Color
Clear
Connection
Terminal Screws
Conductor Size
#18 AWG to #10 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Hospital
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA 5-20P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized
Special Features

  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Beveled housing prevents snagging
  • Catalog number is visible on the device while-in use for easy identification
  • Certified for current interrupting at full rated current
  • Cord mounted
  • Corrosion resistant
  • Grounding plug
  • Individual wiring terminals completely enclosed in their own separate chambers
  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Multiple drive screws provide screwdriver versatility
  • Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
  • Powerful off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminations
  • Powerful, off setting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminals
  • Ribbed nylon housing is impact and chemical resistant
  • Roomy wiring chamber provides ample space for wiring
  • Transparent angled wiring entrance holes permit straight in conductor insertion
  • VARI-SIZE® pointer set to smaller than gauge position
  • Withstands 2000 VAC dielectric voltage

Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Angle Style Standard Grounding
Voltage Rating
125
Wattage
2,000
