Hubbell Hubbell HBL5966VBLK


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, ValiseSeries, Industrial/Commercial Grade, Straight, 2-Pole 3-WireGrounding,15A 125V, 5-15P, Black, Single Pack, Insulation Displacement

Modified Industry Description

15A 125V MALE BLACK

AD Description

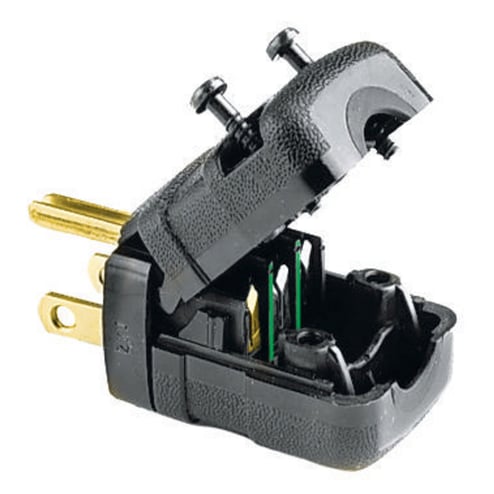

Wiring Device-Kellems Valise® HBL5966VBLK Straight Style Standard Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Vendor Description

Have it all with the Valise® line of plugs and connector bodies from Hubbell, Inc. With Valise® devices, OEMs and Contractors will get the speed, ease and economy they want While being able to offer their customers and end users excellence in performance durability and reliability.

Specifications

Amperage Rating
15
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Black
Connection
Terminal Screws
Conductor Size
#16 AWG to #10 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
5-15P
NEMA_Rating
NEMA 5-15P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single
Poles
2
Size
Standard Sized
Special Features

  • 18 to 16 AWG solid or stranded copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • Cord mounted
  • Corrosion resistant
  • Eight specially designed load bearing locking lugs insure a positive fit as the blade holder and sides are closed
  • Grounding plug
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Nylon cord clamp, brass contact blade and ground contact blade
  • Nylon webs are provided to make wiring quick and easy by joining the three sections together during assembly
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Removable cord inserts
  • Totally insulated impact and crush resistant nylon body
  • Two captive multiple drive assembly screws
  • Unique, patented clamp type terminals provide superior electrical connection by bundling conductor strands when clamps are tightened
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Straight Style Standard Grounding
Voltage Rating
125
Wattage
1875
