Hubbell Hubbell HBL9758VY
Hubbell HBL9758VY
Kirby Risk #: 487121
UPC: 78358501331, 783585013312, 00783585013312
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, ValiseSeries, Commercial Grade, Straight, 2-Pole 2-Wire Non Grounding, 125V,20A 2-20P, Yelow, Single Pack
Modified Industry Description
20A 125V MALE YELLOW VALISE
AD Description

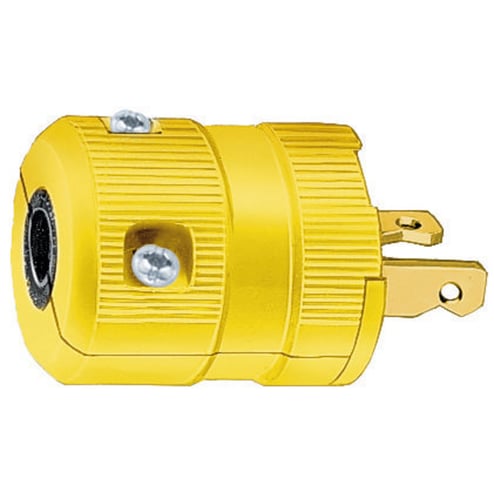

Wiring Device-Kellems Valise® HBL9758VY 1-Phase Male Non-Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 2 Wires
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Terminal Screws
|
| Conductor Size |
#18 AWG to #14 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
1-20P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
2
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Valise
|
| Voltage Rating |
125
|
| Wattage |
2,000
|
